Fire Resistant UTP CAT5e Data Cables

Fire Resistant UTP CAT5e Data CablesFire Resistant UTP CAT5e Data Cables

Application:

The cables are designed for structure wiring, compatible with all known connection systems according to EN

50173.

Based on the design for structured wiring (found in IEC 61156 and BS EN 50288), this cable brings together high

frequency data transmission and circuit integrity in four pair cable that will continue to transmit data even when

being directly attacked by fire.

Standards:

Basic design to EN50173

Fire Performance:



Circuit Integrity

IEC 60331-23; BS 6387 CWZ; DIN VDE 0472-814(FE180); CEI 20-36/2-1; SS299-1; NBN C 30-004 (cat. F3);
NF C32-070-2.3(CR1)

System Circuit Integrity

DIN 4102-12, E30 depending on lay system



Flame Retardance (Single Vertical Wire Test)

EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2;
VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*

reduced Fire Propagation
(Vertically-mounted bundled wires
& cable test)

EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4



halogen Free

IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1; BS 6425-1*



No Corrosive Gas Emission

IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*

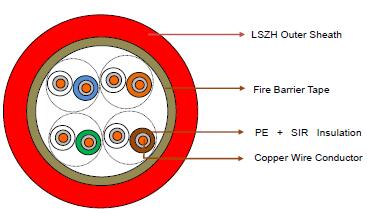

Cable Construction:

Conductors: Plain annealed copper wire, solid according to IEC 60228 class 1.

Insulation: PE and SIR compound.

Cabling elements: Insulated cores are twisted to form pairs with varying lay length to minimize crosstalk.

Two-pair cable had four cores laid in quad formation.

Fire Barrier: Fire resistance tape wrapped overall core assembly.

Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1.

Physical and Thermal Properties:

Temperature range: -30°C ~ +75°C

Minimum bending radius during installation (mobile state): 8 x Overall Diameter

Minimum bending radius during operation (fixed state): 4 x Overall Diameter

Electrical Performance:

Characteristic Impedance

100 Ohm±15%

Nominal Velocity of Propagation (NVP)

69%

Max. DC resistance

9.38 Ohm/100m

Max. resistance Unbalance

5%

Max. Mutual Capacitance:

5.6 nF/100m

Maximum Capacitance Unbalance

330 pF/100m

Max. Propagation Delay Skew

45 ns/100m

Max. Propagation Delay

536 ns/100m@100 mhz

Max. Pulling load

80N

Transmission Properties:

FreQ
(MHz)

NEXT(dB/100m)
Minimum Value/Typical Value/
Standard value

Il
(dB/100m)

SRL (dB/100m)
Minimum Value/Typical Value/
Standard value

1

64.0/71.0/62.0

2.0

24.5/26.0/23.0

4

55.0/62.0/53.0

4.0

24.5/26.0/23.0

8

49.5/57.0/48.0

5.7

24.5/26.0/23.0

10

49.0/56.0/47.0

6.4

24.5/26.0/23.0

16

44.9/52.0/44.0

8.2

24.5/26.0/23.0

20

42.5/48.0/42.0

9.2

24.5/26.0/23.0

25

42.0/48.0/41.0

10.3

24.5/26.0/23.0

31.25

40.6/48.0/39.0

11.6

22.5/24.0/21.0

62.5

36.1/43.0/35.0

16.9

19.5/22.0/18.0

100

34.0/40.0/32.0

21.8

17.5/20.0/16.0

Construction Parmeters:

Cable Code

Conductor Diameter

Nominal Sheath Thickness

Nominal Overall Diameter

Approx. Weight



mm

mm

mm

kg/km

FFX-CAT5EU/UTP4P24FR

0.50±0.01

1.20±0.1

11.0±1.0

130
